Platform Capabilities (Local)

When running the mobile sandbox (playground/mobile-sandbox) locally, there is no real mobile banking platform. The mobile harness (@cdx-extensions/di-sdk-mobile) provides all platform capabilities through mock data and simulated behaviour.

For prerequisites, setup, and local development commands, see the CDX Extensibility Apps README.

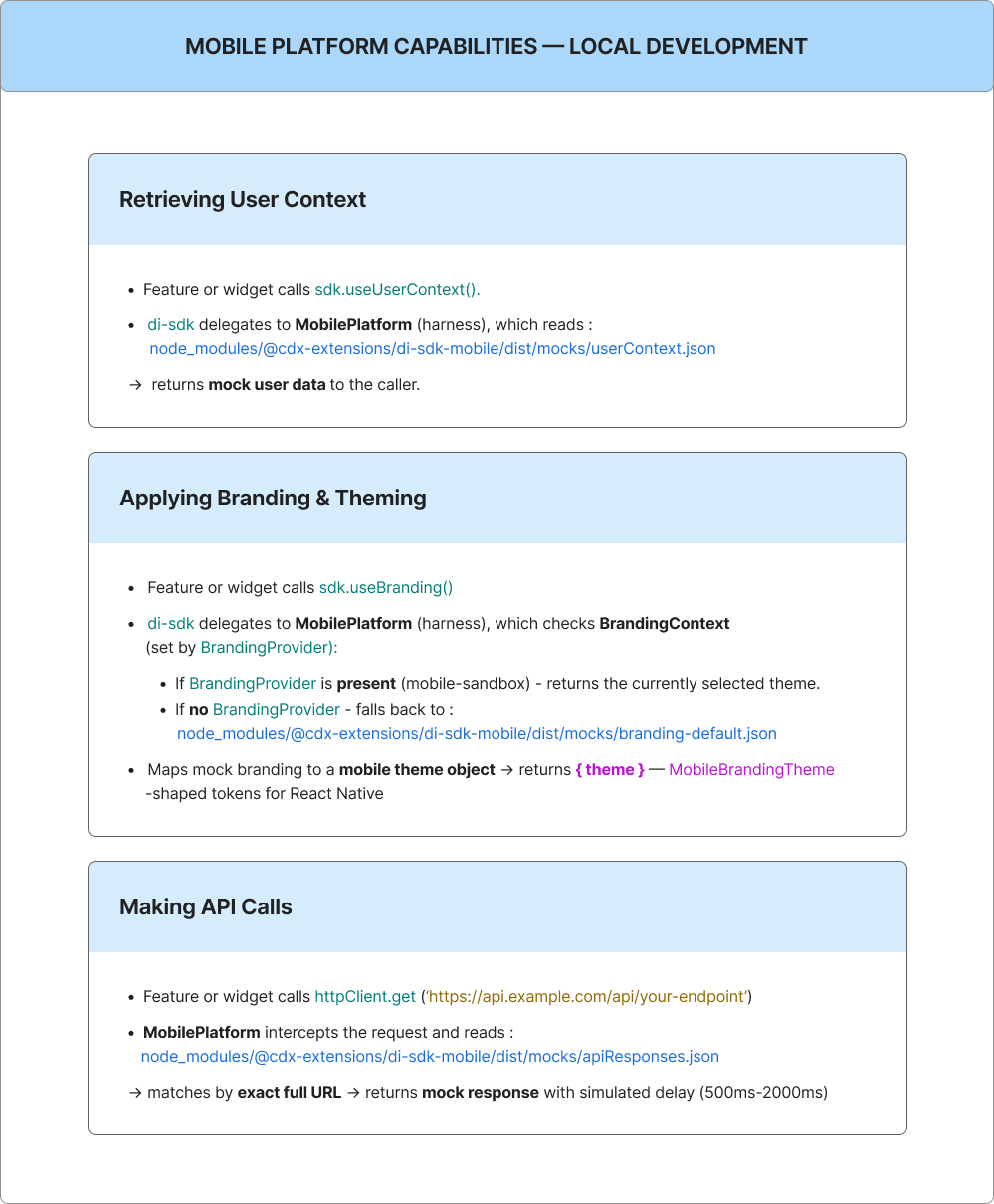

Here is exactly what each capability maps to:

Mock Data Files

File	Purpose
node_modules/@cdx-extensions/di-sdk-mobile/dist/mocks/userContext.json	Mock logged-in user returned by useUserContext()
node_modules/@cdx-extensions/di-sdk-mobile/dist/mocks/apiResponses.json	All mock API endpoint responses used by getHttpClient()
node_modules/@cdx-extensions/di-sdk-mobile/dist/mocks/branding-default.json	Default branding/theme data (when BrandingProvider is not available)
node_modules/@cdx-extensions/di-sdk-mobile/dist/mocks/branding-classic-blue.json	Classic Blue branding variant
node_modules/@cdx-extensions/di-sdk-mobile/dist/mocks/branding-purple-elegance.json	Purple Elegance branding variant
node_modules/@cdx-extensions/di-sdk-mobile/dist/mocks/branding-ocean-blue.json	Ocean Blue branding variant
node_modules/@cdx-extensions/di-sdk-mobile/dist/mocks/branding-forest-green.json	Forest Green branding variant
node_modules/@cdx-extensions/di-sdk-mobile/dist/mocks/branding-crimson-red.json	Crimson Red branding variant

tip

These files are inside node_modules so they will be reset on npm install.

Sample Mock User Context (userContext.json)

{
  "institutionUserId": "1BC594E59CBB0846E063C0A011AC7A12",
  "userName": "skapa",
  "lastName": "Kapa",
  "firstName": "Srinivasa",
  "fullName": "Srinivasa Kapa",
  "guid": "25c6b6950f0c481ab036d3e3039cab31",
  "email": "skapa@test.com",
  "institutionUserRole": "PRIMARY",
  "institutionUserType": "RETAIL",
  "institutionId": "00516"
}

Modify this file to simulate different users (e.g. admin role, different institution) during local development.

info

Please use the fields shown above. Additional fields are currently unsupported.

Branding on Mobile

Mobile features and widgets use sdk.useBranding() for colors, typography, and component-oriented tokens. They stay visually consistent with the institution's branding on the mobile banking host.

How it Differs from Web

On web, useBranding() returns an MUI theme object that you pass to ThemeProvider, and global theming on the Online Banking application can override widget-level styling.

On mobile, the same SDK method returns a MobileBrandingTheme-shaped object intended for React Native. Map those tokens to StyleSheet values, themed primitives, or your own design-system components. Do not use MUI or CSS theme objects.

Local Development

When you run playground/mobile-sandbox locally, the mobile harness (@cdx-extensions/di-sdk-mobile) supplies branding from mock data under node_modules/@cdx-extensions/di-sdk-mobile/dist/mocks/.

tip

Treat theme as possibly incomplete during local development. Always provide local fallback values, so your feature or widget remains usable before every token is populated by the harness or host.

Switching Brandings in the Sandbox

The sandbox app wraps all screens in a BrandingProvider (from @cdx-extensions/di-sdk-mobile) that enables live branding switching during development. Tap the ⚙ gear icon in the navigation header to open the theme picker and select from:

Branding ID	Name
branding-classic-blue	Classic Blue
branding-purple-elegance	Purple Elegance
branding-ocean-blue	Ocean Blue
branding-forest-green	Forest Green
branding-crimson-red	Crimson Red

Your feature or widget receives the selected theme automatically through sdk.useBranding() (no code changes are needed). Use this to verify that your UI renders correctly under different brandings.

tip

The branding-default.json mock is used as a static fallback (when no BrandingProvider is present). It does not appear in the settings switcher.

Production

On the mobile banking host, the institution's live branding injects at runtime. Your code remains unchanged; only the theme data source changes. Hardcoding colors and typography should not be the sole source of truth when SDK theming is available.

For the method signature, parameters, return types, and code examples, see SDK Reference.

Local Development Setup

Before you start: Complete the prerequisites and environment setup described in the CDX Extensibility Apps README.

Setup

Bash

git clone https://github.com/candescent-dev/cdx-extensibility-apps.git && cd cdx-extensibility-apps
npm install

Build

Bash

npx nx run investment-portfolio:build
npx nx run agent-feature:build

Start from the Mobile Sandbox

Bash

npx nx start mobile-sandbox

This runs npx expo start inside playground/mobile-sandbox/. Scan the QR code with Expo Go (Android) or press i for the iOS Simulator.

Build Targets

Each mobile feature and widget defines three Nx targets:

Target	Command	Description
build	npx nx run <name>:build	Production build with tsup (CJS + ESM + .d.ts)
dev	npx nx run <name>:dev	Watch mode for development
typecheck	npx nx run <name>:typecheck	TypeScript type checking (no emit)

Next Steps

• Host App Integration — Repository structure and submission process
• FAQ & Troubleshooting — Common issues and recommendations
